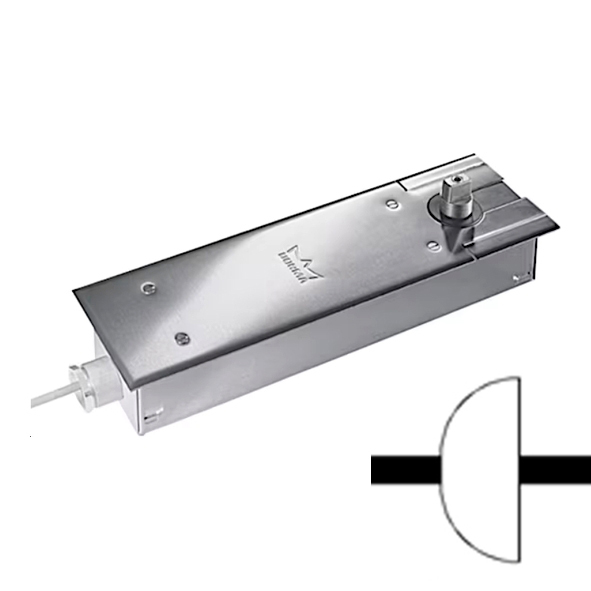

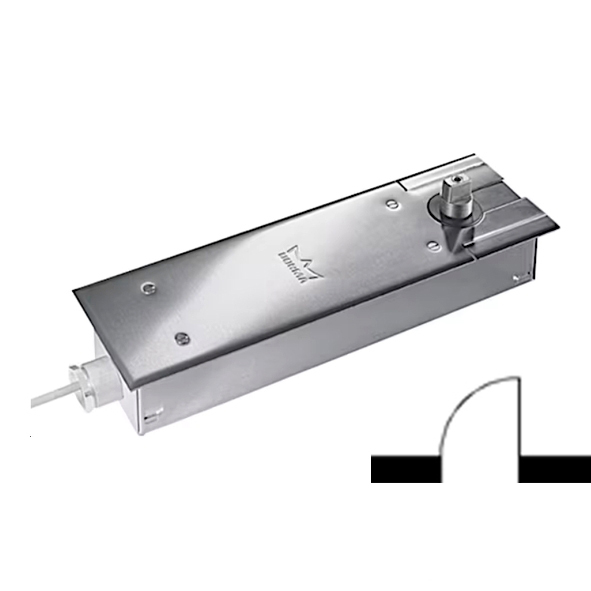

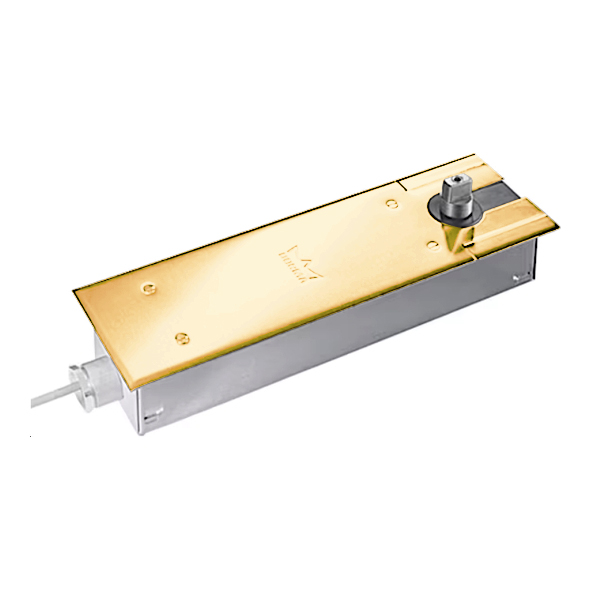

These products include the cement box and the straps and pivots for single or double action doors

Opening angle : Up to 105 degrees [each direction]
Closing Force : Fixed size EN 4
Maximum Door Width : Standard doors up to 1100mm
Maximum Door Weight : 300kg
Suitable for external outward opening doors: Yes
Fire and smoke check doors : Yes
Handed : No
Closing speed adjustment : By valve 0 to 105 degrees
Latching action adjustment : Yes
Delayed action : No
Backcheck : Yes
Hold-open : Yes • Electro mechanical • Selectable between 75 and 105 degrees
Dimensions : Cover plate 358 x 105mm • Box L - 341 x W - 78 x D - 60mm
Spindle : Standard spindle supplied • Optional extended spindles available from +5mm to +50mm
Compliant with EN 1154 : Yes
CE Marked : Yes
Certifire Approved : Yes
Other certification : ISO 9001
Other models available : EN 5 • EN 6 • 180 degree opening in each direction [Handed]
